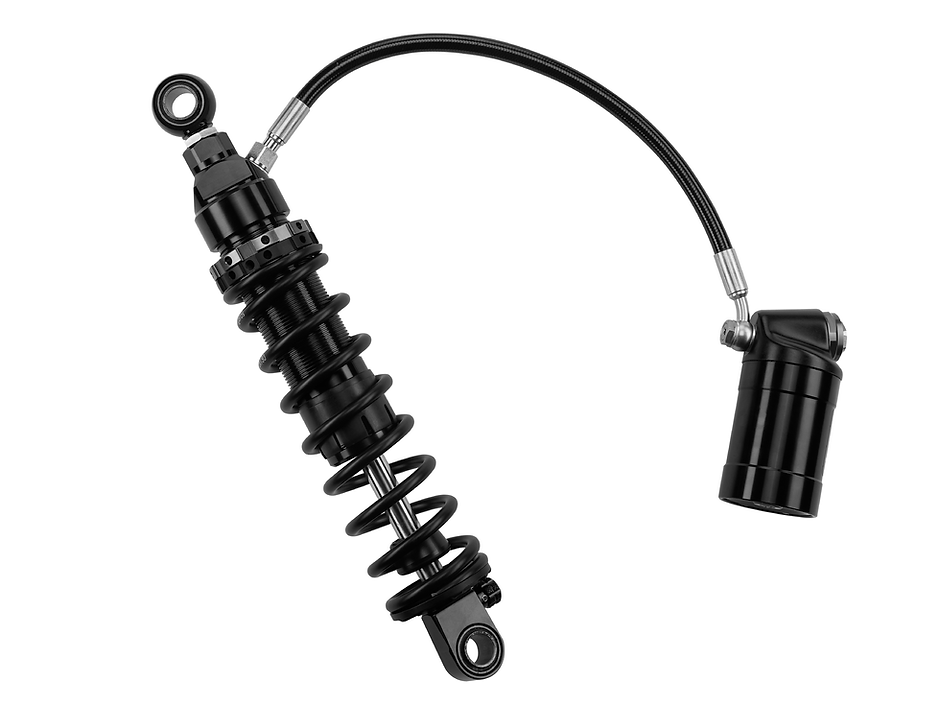

SHICANE HD HLR REMOTE
for Harley-Davidson Touring
ALUMINUM ALLOY PISTONS
Customize your ride with 24-click rebound
adjustments for the perfect setup.
ADJUSTABLE REBOUND
BLADDER TECH
Bladder gas tech boosts shock sensitivity for stable, comfortable rides.
Precisely CNC-machined pistons from high-quality 7-series aluminum ensure consistent damping.
CO-AXIAL SYSTEM
High-speed compression: 24 clicks.
Low-speed compression: 24 clicks.
ADVANCED LIGHTWEIGHT DESIGN
Utilizing aerospace-grade aluminum forging construction and a military-grade surface coating, RACINGBROS achieve weight savings of up to 30% compared to conventional competitors.
Ⓐ CO-AXIAL SYSTEM
Rev up your riding adventure with cutting-edge Co-axial High/Low-Speed Compression Damping System.
Ⓑ BLADDER TECH
RACINGBROS features bladder oil/gas technology to enhance shock sensitivity, with an extra-large reservoir volume ensuring the most stable and comfortable riding experience.
DAMPING

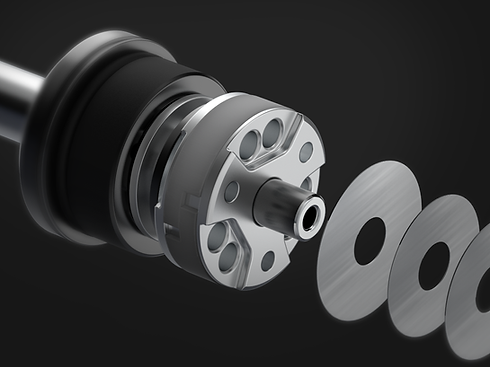

Optimized valving design ensures precise suspension control by regulating oil flow for stability and responsiveness. Shims, precision-engineered steel discs, fine-tune damping in forks and shocks. CNC-machined 7-series aluminum pistons deliver consistent, reliable performance across all conditions.
BRACKET

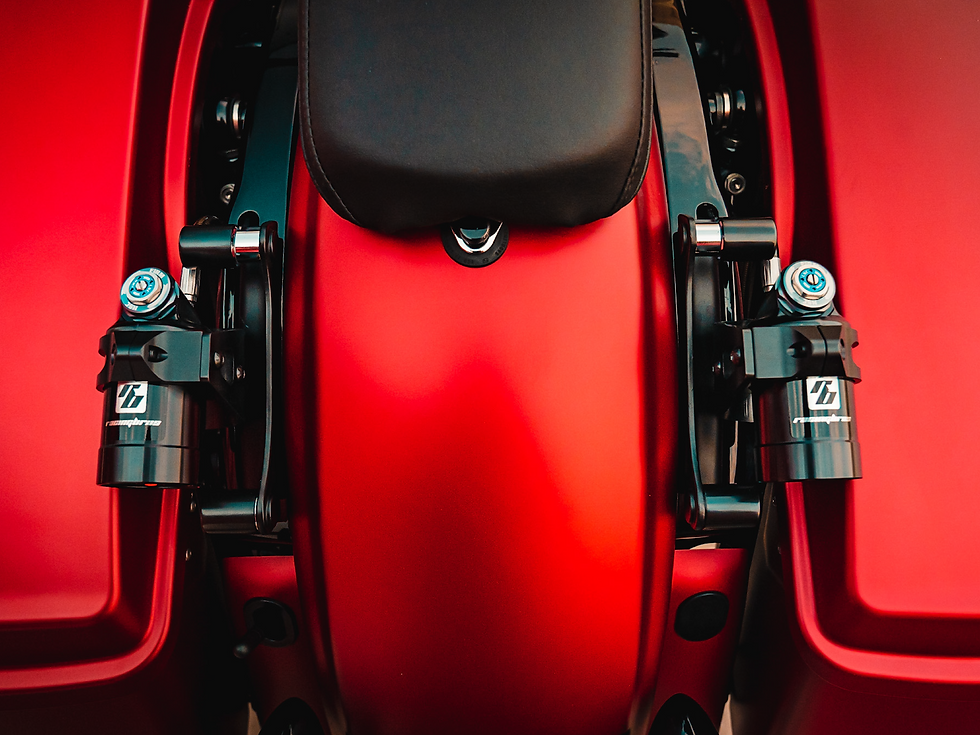

This bracket is designed for Harley-Davidson Touring models and supports 12", 13" and 14" shock lengths. It comes with two spacer options: the short spacer for use with Tour Pak or saddlebag support inserts, and the long spacer for use with fender strut inserts.
FEATURES / SPECS
- Co-axial damping system
- Weight savings of up to 30%
- Military-grade surface coating
- 7075-T6 CNC-machined piston
- Bladder Oil/Gas separation tech
- 6061-T6 cold forged damper body
---
Wide-range low-speed rebound: 24 ±3 clicks
High-speed compression: 24 ±3 clicks
Low-speed compression: 24 ±3 clicks
Eye to eye length: 305 / 335 / 355 mm ( 12 / 13 / 14 inches )
※ Settings may vary. Refer to actual product.

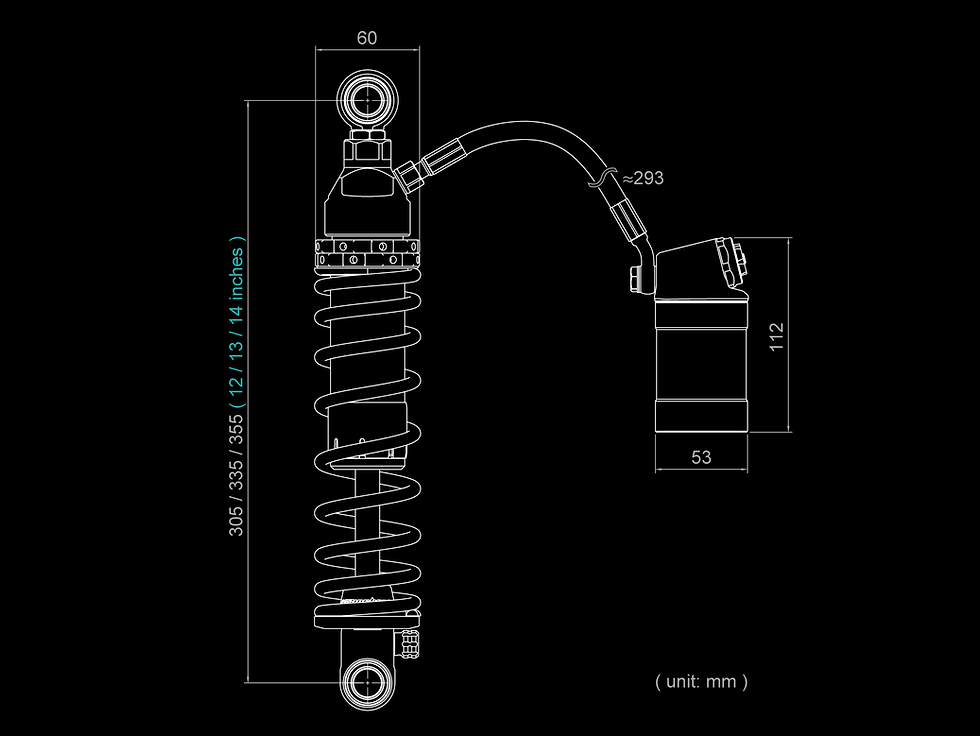

DIMENSION DRAWING
