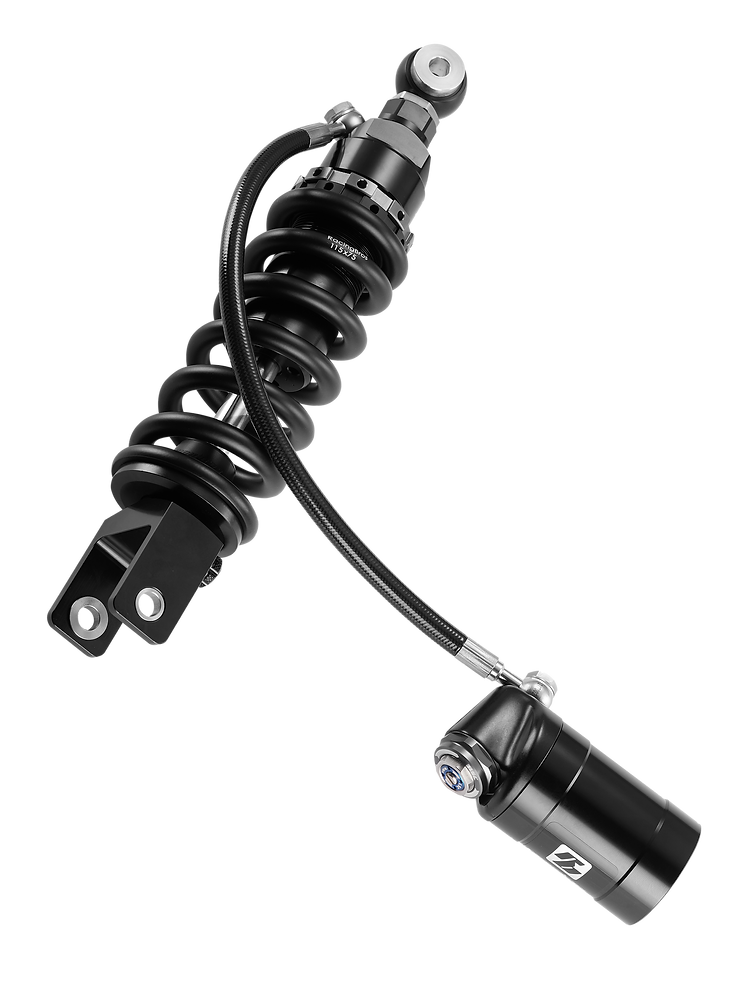

SHICANE HLR REMOTE

for Scooters


ADVANCED LIGHTWEIGHT DESIGN

Utilizing aerospace-grade aluminum forging construction and a military-grade surface coating, RACINGBROS achieve weight savings of up to 30% compared to conventional competitors.

Ⓐ BLADDER TECH

RACINGBROS features bladder oil/gas technology to enhance shock sensitivity, with an extra-large reservoir volume ensuring the most stable and comfortable riding experience.



Ⓑ CO-AXIAL SYSTEM

Rev up your riding adventure with cutting-edge Co-axial High/Low-Speed Compression Damping System.

ALUMINUM ALLOY PISTONS

Precisely CNC-machined pistons from high-quality 7-series aluminum ensure consistent damping.


DAMPING

Optimized valving design ensures precise suspension control by regulating oil flow for stability and responsiveness. Shims, precision-engineered steel discs, fine-tune damping in forks and shocks. CNC-machined 7-series aluminum pistons deliver consistent, reliable performance across all conditions.

PRELOAD ADJUSTER

(OPTIONAL)

The REVOLVER Hydraulic Preload Adjuster allows you to adjust preload settings at any time—no tools, seat, or side cover removal required.

For models equipped with the REVOLVER system, please refer to the link.


FEATURES / SPECS

◦ JIS G3560 Cr-Si high-rigidity steel spring, 5–8% lighter than standard springs


◦ Co-axial damping system


◦ 2,500 psi hose with CNC stainless fittings


◦ 14 mm high-rigidity super-chrome shaft


◦ Bladder Oil/Gas separation tech


◦ 6061-T6 cold-forged damper body


​◦ 7075-T6 CNC-machined piston


◦ MIT high-precision spherical bearings


◦ Stainless steel gas bracket


◦ Adjustable spring preload


◦ Speed Adaptive Valving

---

Adjustment Range:
Wide-range low-speed rebound: 24 ±3 clicks
High-speed compression: 24 ±3 clicks
Low-speed compression: 24 ±3 clicks

※ Settings may vary. Refer to actual product.

COMPATIBILITY

YAMAHA
FORCE
SMAX


SYM

ADXTG

KYMCO
KRV

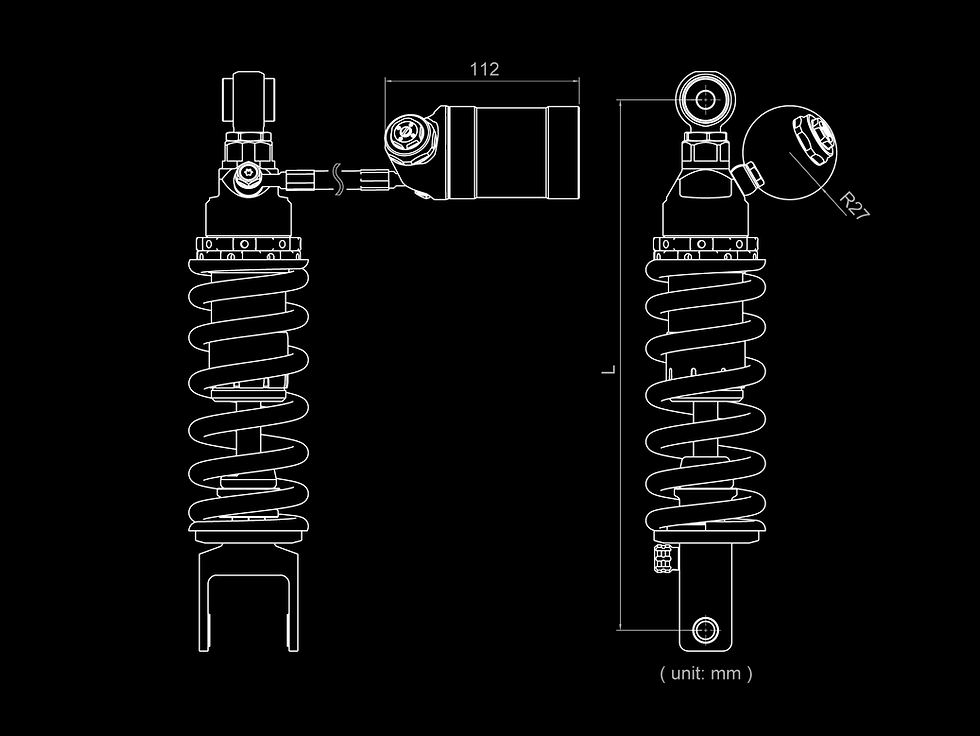

DIMENSION DRAWING


The eye-to-eye length (marked as 'L') and mounting configurations may vary depending on the vehicle’s make, model, year, and customization. All products are custom-made by each distributor. Please consult your distributor to confirm the correct specifications for your setup.
